Lift weights of 6000 kilos at 4 metres length (Maximum reach is 24 metres)

4 x 6 drive wheel configuration so ideal for certain off road terrain.

All the HIAB's in the fleet have loading bed options of short leg (3.6 x 2.5 metres) or 13.6 metre flatbed trailers.

All Terrain Tracked HIAB, this is a go anywhere vehicle its Dims are 6.2 long x 2.5 wide x 3.45 high

All the Hiabs are controlled remotely which vastly increases the operators handling of the Crane.

One Hiab with a Flyjib, 31 metre reach

The F660 is a Crane that has a reach of 23.5 metres

We have two Cranes to of the F330 spec, the first has two manual extensions which gives it a total reach of 21.75 metres

The second has a reach of 16.75 metres

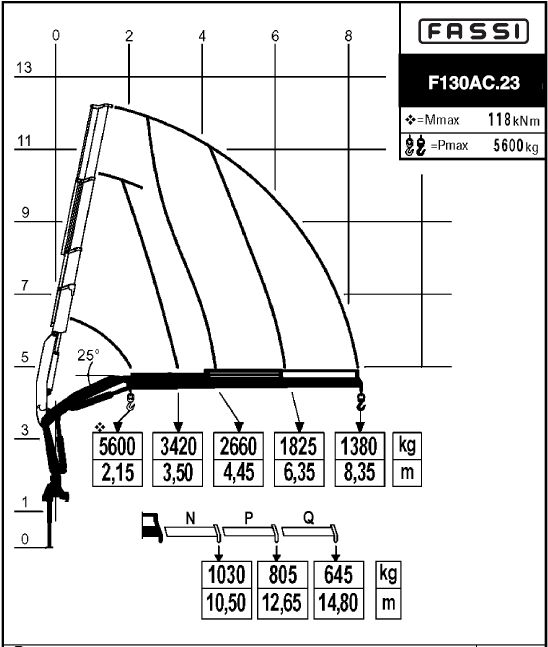

The F130 is on the ATV tracked vehicle and has a maximum reach of 10.5 metres.

ATV Height is 3.5 metres

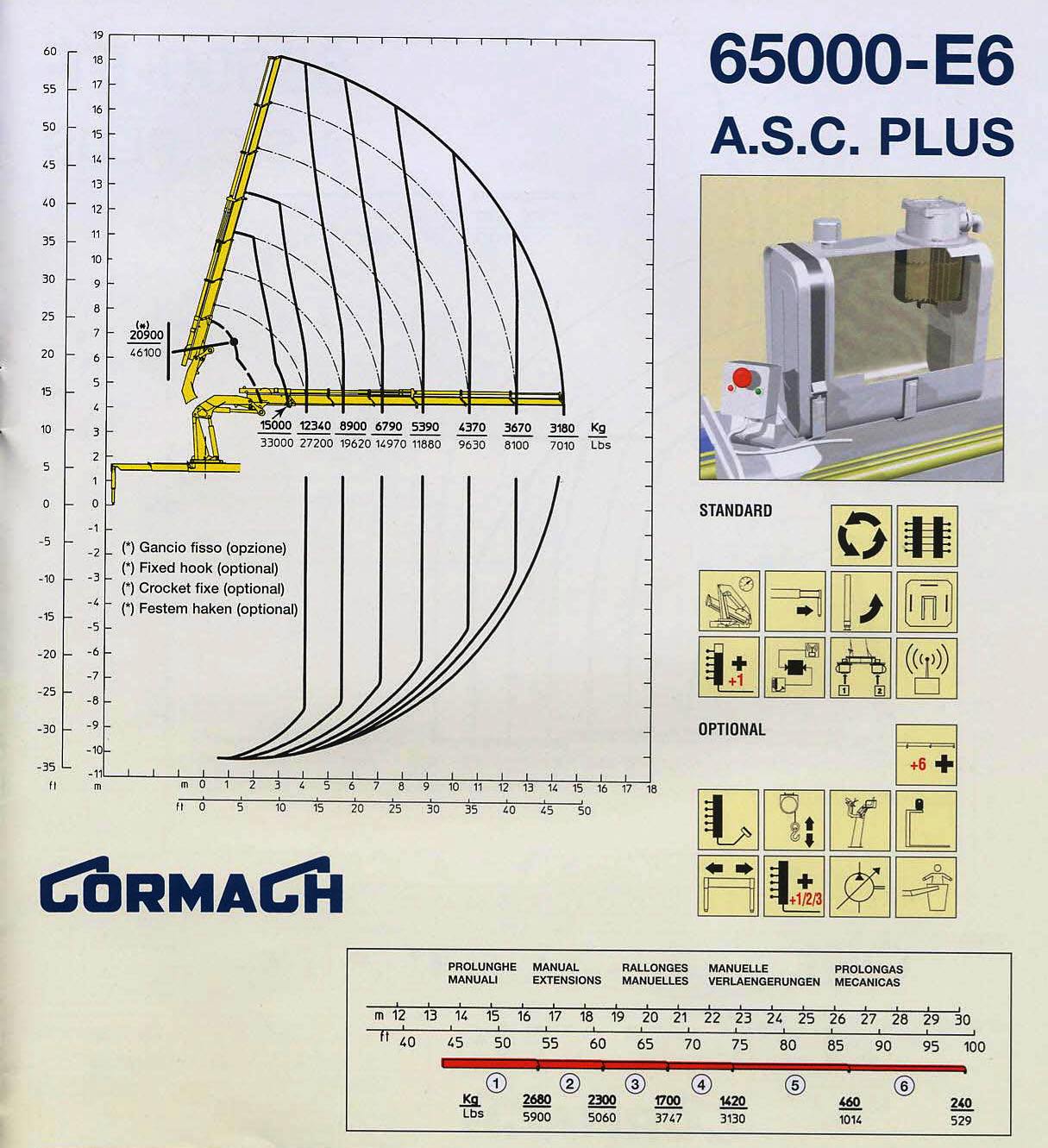

The Cormach has a reach of 16.5 metres

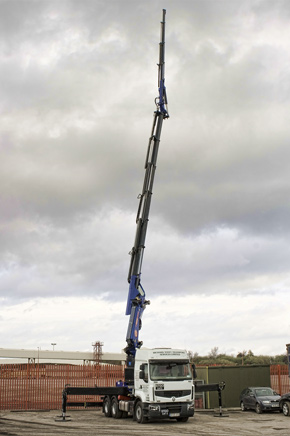

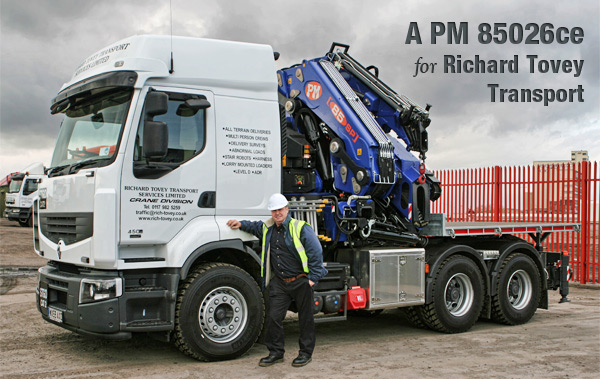

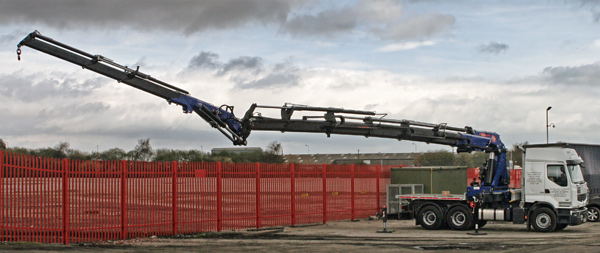

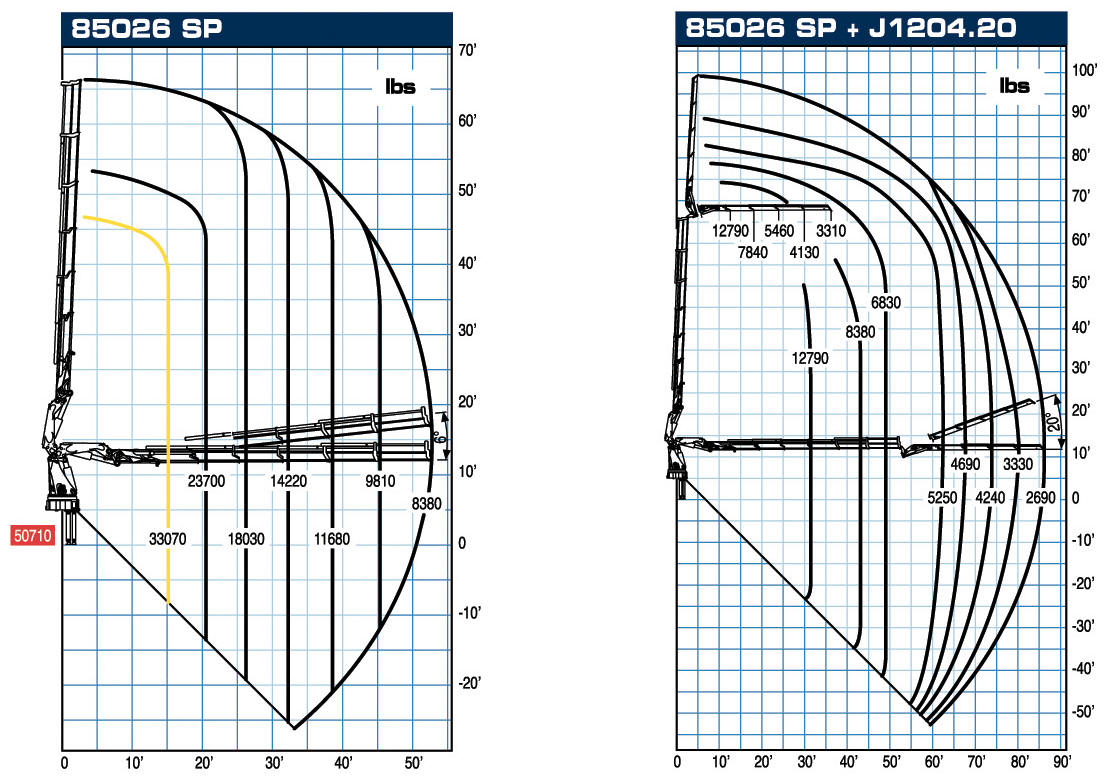

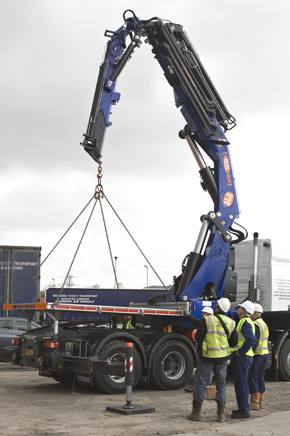

PM 850 HIAB WITH OR WITHOUT THE FLYJIB

Track loading is Un-laden = 0.17 Kilos per Cm² Laden = 0.28 Kilos per Cm²
